Needle Valve

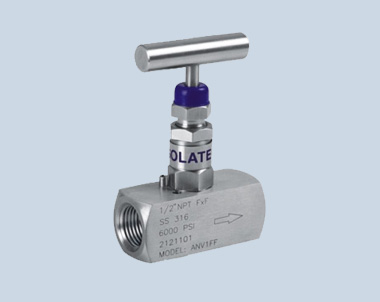

Needle Valve - ANV 1 FF

End Connection NPT / BSPP / BSPT
Maximum working pressure 413 bar / 6000 PSI at 100°C
Gland Packing PTFE / Graphite
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L

Note: MOC in accordance with NACE MR0175 is available on request.

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
93
55
25
0.36
3/8"
93
55
25
0.37
1/2"
95
66
28
0.46
3/4"
109
70
38
0.8
1"
117
80
45
1.3

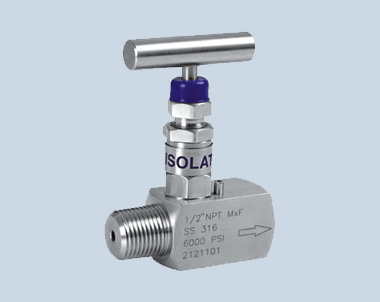

Needle Valve - ANV 1 MF

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
93
65
25
0.45
3/8"
93
65
25
0.45
1/2"
95
76
28
0.56
3/4"
109
80
38
0.9
1"
117
95
45
1.4

Note: MOC in accordance with NACE MR0175 is available on request.

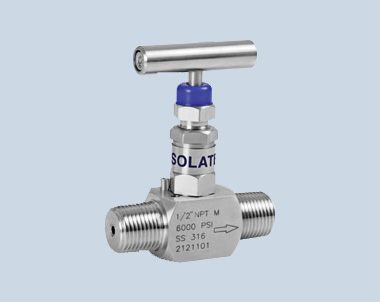

Needle Valve - ANV 1 MM

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
93
65
25
0.4
3/8"
93
65
25
0.4
1/2"
95
76
28
0.5
3/4"
109
80
38
0.8
1"
117
95
45
1.3

Note: MOC in accordance with NACE MR0175 is available on request.

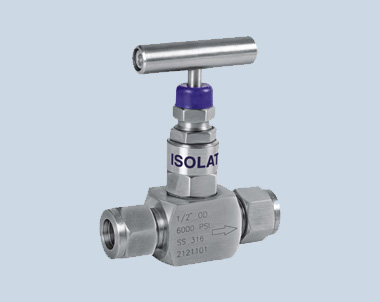

Needle Valve - ANV 1 CF

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
93
70
25
0.3
3/8"
93
72
25
0.32
1/2"
95
76
28
0.4
6mm
93
70
25
0.3
10mm
93
72
25
0.4
12mm
95
76
28
0.4

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 2 FF

End Connection NPT / BSPP / BSPT
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 304, 304L, 316, 316L
Maximum working pressure 413 bar / 6000 PSI at 100°C
Gland Packing PTFE / Graphite
SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
90
55
25
0.4
3/8"
90
55
25
0.4
1/2"
93
66
28
0.5
3/4"
100
70
38
0.8
1"
100
80
45
1.4

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 2 MF

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
90
65
25
0.45
3/8"
90
65
25
0.45
1/2"
93
76
28
0.56
3/4"
100
80
38
0.9
1"
100
95
45
1.5

Note: MOC in accordance with NACE MR0175 is available on request.

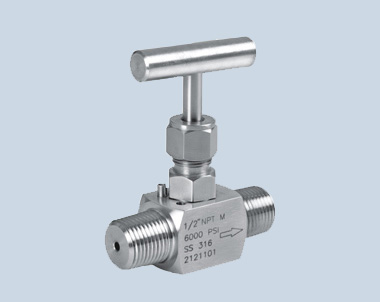

Needle Valve - ANV 2 MM

SIZE
A
B
CSQ
WEIGHT (kg)
1/4"
90
65
25
0.45
3/8"
90
65
25
0.45
1/2"
93
76
28
0.56
3/4"
100
80
38
0.9
1"
110
95
45
1.4

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 3 FF

SIZE
A
B
C
D
WEIGHT (kg)
1/4"
101
38
25
76
0.45
3/8"
101
38
25
76
0.45
1/2"
115
50
28
76
0.575

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 3 MF

SIZE
A
B
C
D
WEIGHT (kg)
1/4"
101
38
25
76
0.45
3/8"
101
38
25
76
0.45
1/2"
115
50
28
76
0.575

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 3 MM

SIZE
A
B
C
D
WEIGHT (kg)
1/4"
101
38
25
76
0.45
3/8"
101
38
25
76
0.45
1/2"
115
50
28
76
0.575

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 4 FF

End Connection NPT / BSPP / BSPT
Maximum working pressure 690 bar / 10,000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 304, 304L, 316, 316L
Gland Packing PTFE / Graphite
SIZE
A
B
C(Sq)
WEIGHT (kg)
1/4"
93
55
28
0.44
3/8"
93
55
28
0.44
1/2"
111
67
38
0.85

Note: MOC in accordance with NACE MR0175 is available on request.

Needle Valve - ANV 4 MF

SIZE
A
B
C(Sq)
WEIGHT (kg)
1/4"
93
65
28
0.45
3/8"
93
65
28
0.45
1/2"
111
76
38
0.88

Note: MOC in accordance with NACE MR0175 is available on request.
