Manifold Valves

2 Valve Manifold - Remote Mounting

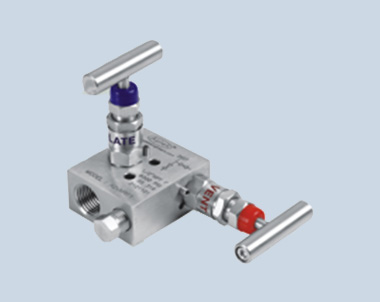

Manifold Valve - A 2VM RF 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Manifold Valve - A 2VM RF 2

STANDARD SPECIFICATION:
Weight : 1.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.

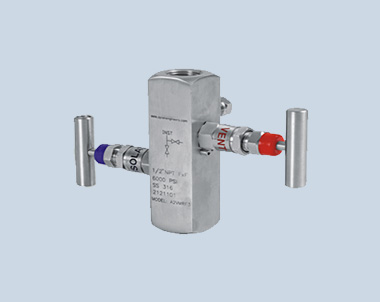

Manifold Valve - A 2VM RF 3

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.10 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Manifold Valve - A 2VM RF 4

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.10 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

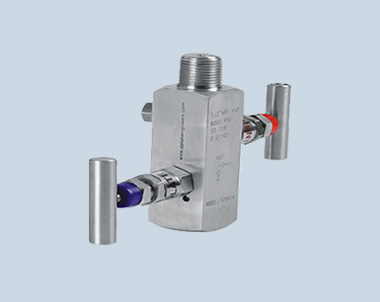

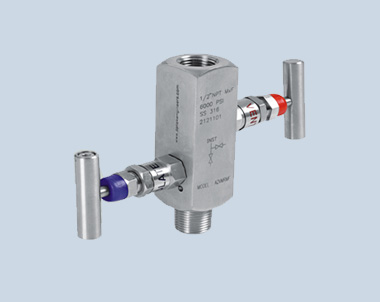

Manifold Valve - A 2VM RMF

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.10 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Needle Valve - ANV 2 MF

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT M
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.10 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

2 Valve Manifold - Direct Mounting

Manifold Valve - A 2VM D 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.60 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

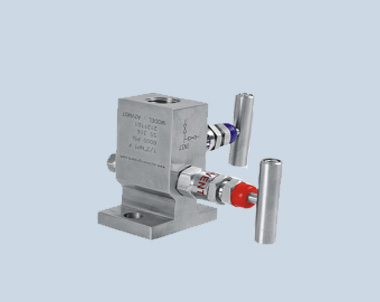

Manifold Valve - A 2VM DT

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.60 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

3 Valve Manifold - Remote Mounting

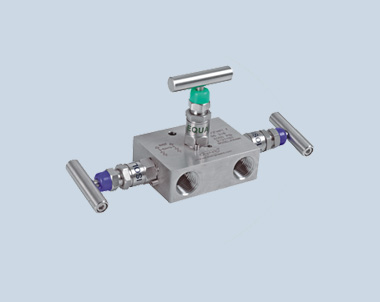

Manifold Valve - A 3VM R

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Weight 1.50 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

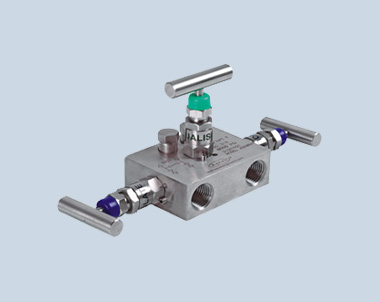

Manifold Valve - A 3VM R V 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.56 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

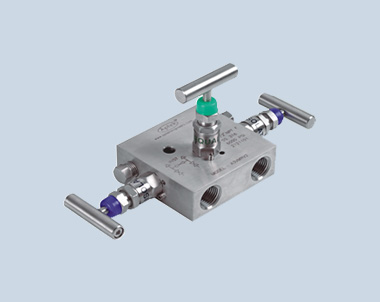

Manifold Valve - A 3VM R V 2

STANDARD SPECIFICATION:
Weight : 2.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.

3 Valve Manifold - Direct Mounting

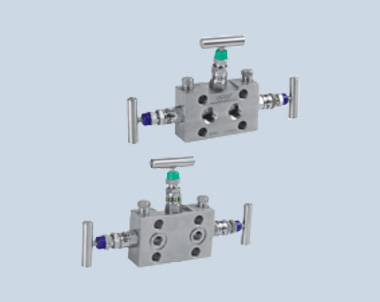

Manifold Valve - A 3VM D 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 2.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

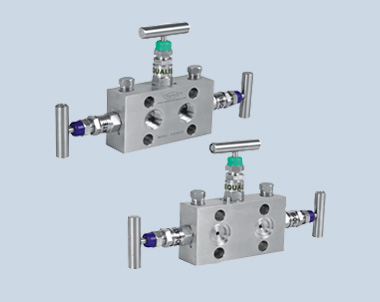

Manifold Valve - A 3VM D 2

STANDARD SPECIFICATION:
Weight : 2.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.

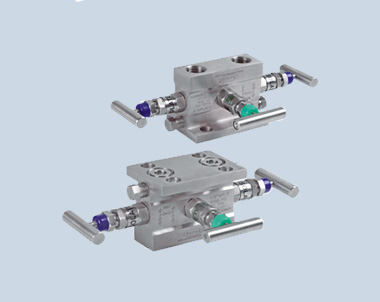

Manifold Valve - A 3VM DT

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 1.90 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

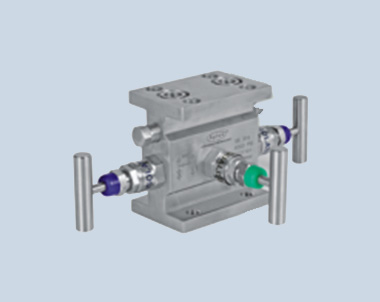

Manifold Valve - A 3VM DH

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection Flanged
Standard instruments connection Flanged
Drain ¼" NPT F (Supplied with ¼" NPT blind plug)
Weight 2.56 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Special Manifolds for DP Gauges

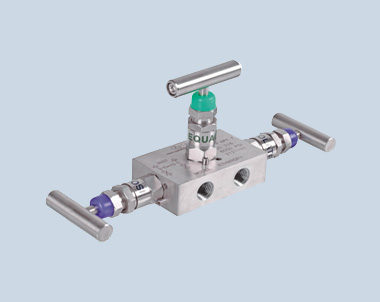

Manifold Valve - A 3VM R DP 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ¼" NPT F
Standard instruments connection ¼" NPT F
Weight 1.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

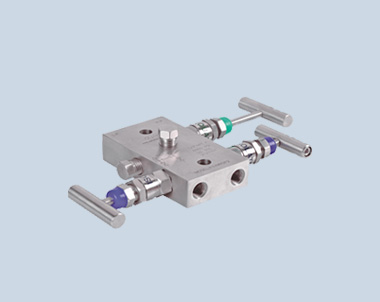

Manifold Valve - A 3VM R DP 2

STANDARD SPECIFICATION:
Weight : 2.00 kg

Note: MOC in accordance with NACE MR0175 is available on request.

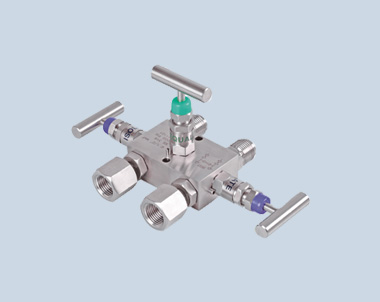

Manifold Valve - A 3VM R DP 3

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection G ½" M or ½" NPT M
Standard instruments connection G ½" F Swivel
Weight 1.90 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

5 Valve Manifold - Remote Mounting

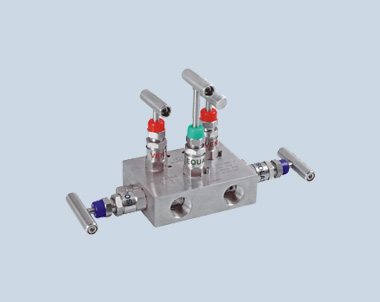

Manifold Valve - A 5VM R 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F
Weight 2.70 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

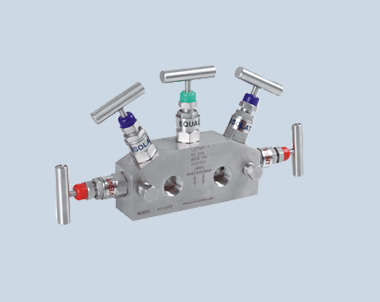

Manifold Valve - A 5VM R 2

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection ½" NPT F
Drain ¼" NPT F
Weight 3.30 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

5 Valve Manifolds - Direct Mounting

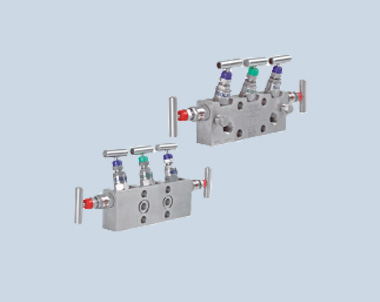

Manifold Valve - A 5VM D 1

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F
Weight 3.30 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

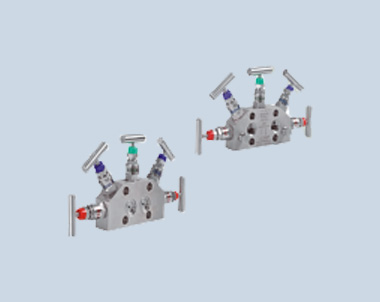

Manifold Valve - A 5VM D 2

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Weight 2.70 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

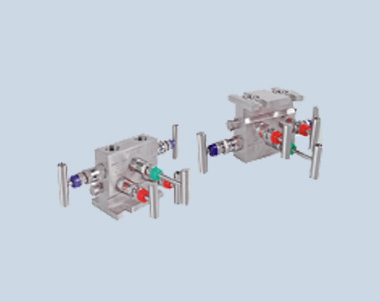

Manifold Valve - A 5VM DT

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT F
Standard instruments connection Flanged
Drain ¼" NPT F
Weight 2.90 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Manifold Valve - A 5VM DH

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection Flanged
Standard instruments connection Flanged
Drain ¼" NPT F
Weight 2.70 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.

Manifold Valve - A 5VM DP

Maximum working pressure 413 bar / 6000 PSI at 100°C
Material Duplex, Super Duplex, Monel, Hastalloy, Inconel, Incoloy, Titanium, Stainless Steel 316, 316L, 304, 304L
Gland Packing PTFE / Graphite
Standard process connection ½" NPT M or G ½" M
Standard instruments connection Swivel Nut G ½"
Drain ¼" NPT F
Weight 3.70 kg

Note: MOC in accordance with NACE MR0175 is available on request.
Valves for 10000 PSI working pressure are also available.
